hd HLS16
HybridLineSource

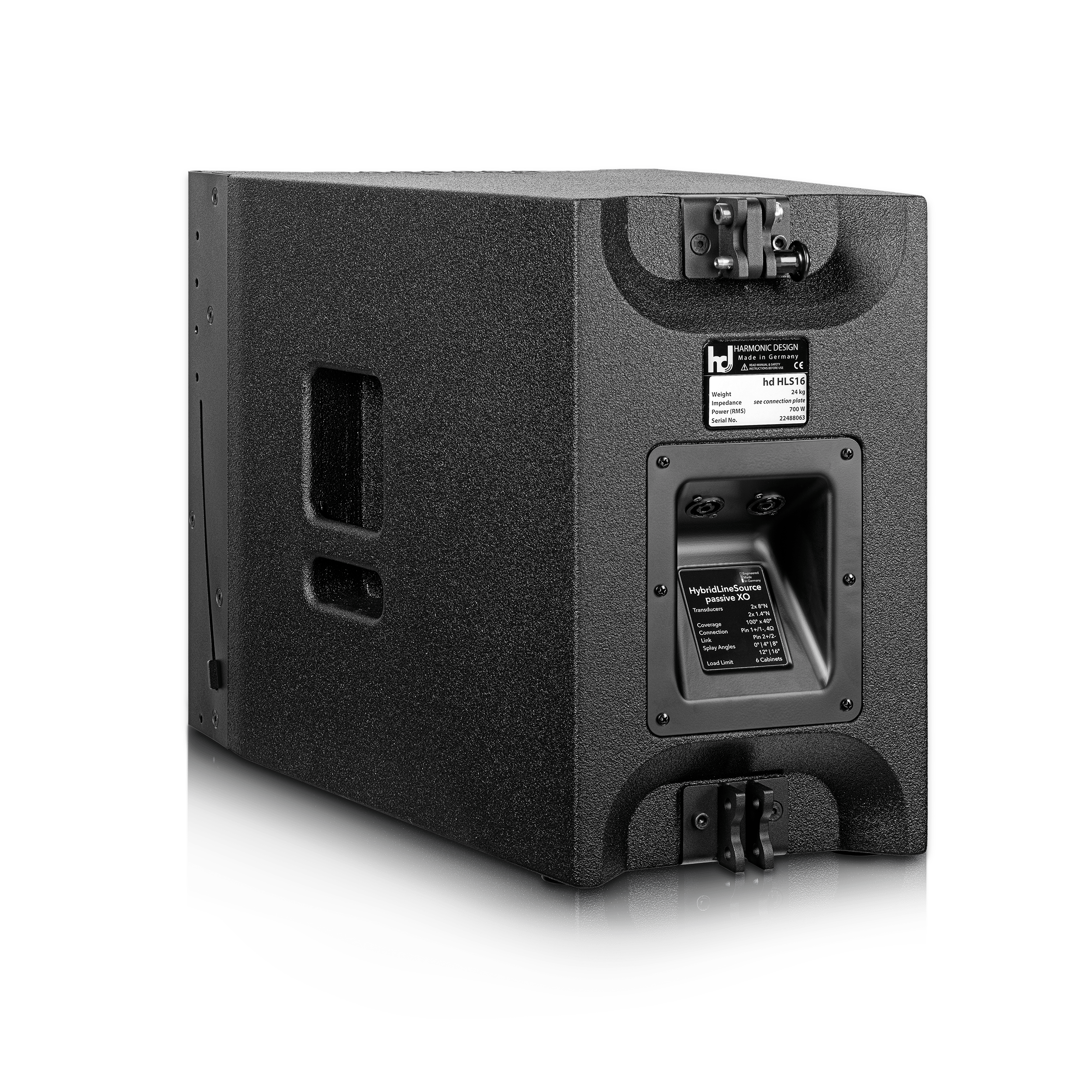

hd HLS16 and hd HLS16P.
A generously dimensioned, passive crossover allows the economical operation of up to two hd HLS16P on just one amplifier channel and is able to reliably distribute the peak power of up to 2800 W to the individual paths. The active separation of the BI-AMP version hd HLS16 takes place in the system amplifier and requires two amplifier channels.
Revolutionary HybridLineSource technology.
HybridLineSource technology is a worldwide unique speaker design developed by Harmonic Design that dramatically reduces the needed truck space and improves the quality of a public address system to a new level of uniformity and complete absence of distortions. The HybridLineSource system, which is equipped with two specially developed high-performance 8″ neodymium woofer drivers, achieves an efficiency of 105 dB in the low/mid range.
Powerful LineSource-Unit makes the Difference.
The extremely large HF unit is a LineSource unit, as is known from LineArrays, and consists of two 1.4″ neodymium compression drivers with a special polymer diaphragm, which, coupled to waveformers, generate a cylindrical wavefront with a vertical sound opening angle of 40°. Therefore the throw of a HybridLineSource-System is comparable with a LineArray. Due to the coaxial setup the horizontal coverage pattern is free of interference in the crossover area and perfectly consistent over an angle range of 100°. Double-Hangs become redundant.
Efficiency new Defined.
The innovative and unique housing design ensures enormous efficiency, extremely compact dimensions and an undistorted maximum sound pressure of greater than 137 dB. The hd HLS16 HybridLineSource system sets new standards in the double 8” class in all disciplines. With the use of multiple 1.4“ compression drivers the typically occurring distortion of a single driver at higher levels, is dramatically reduced another advantage is the improved headroom to cover larger distances. The special SuperVentedDesign allows for standalone applications without additional subwoofer systems a dynamic and broadband playback up to 70 Hz in full-range mode.
Easily Combinable.
The mechanical design allows applications on a tripod or flown vertical arrays of up to eight elements. The angle between the individual speakers can be precisely adjusted from 0° to 16° in 4° increments using the integrated FastRig rigging.
Reliable and Audiophile.
Operation takes place exclusively via Harmonic Design system amplifiers and guarantees outstanding performance and compatibility even under adverse conditions as well as highest efficiency in terms of power consumption, pack size and output. Up to two speakers can be operated per channel through the Harmonic Design system amplifiers. An optional passive phase-optimized crossover allows quick and easy operation on just one amplifier channel. The 2-way BI-AMP mode provides unique neutrality and uncompromising high-end sound and is recommended for all maximum-level requirements.
Sophisticated Accessories save Time and Money.
The hd HLS16-RF3 is both a flying frame and a tripod tilt adapter that can be used to mount a speaker on a high stand with a precisely adjustable tilt in 1° increments from 0° – 15° as well as to fly a vertical array of up to eigth speakers . This gives best flexibility for daily changing applications while reducing the accessories effort.
Sound with System.

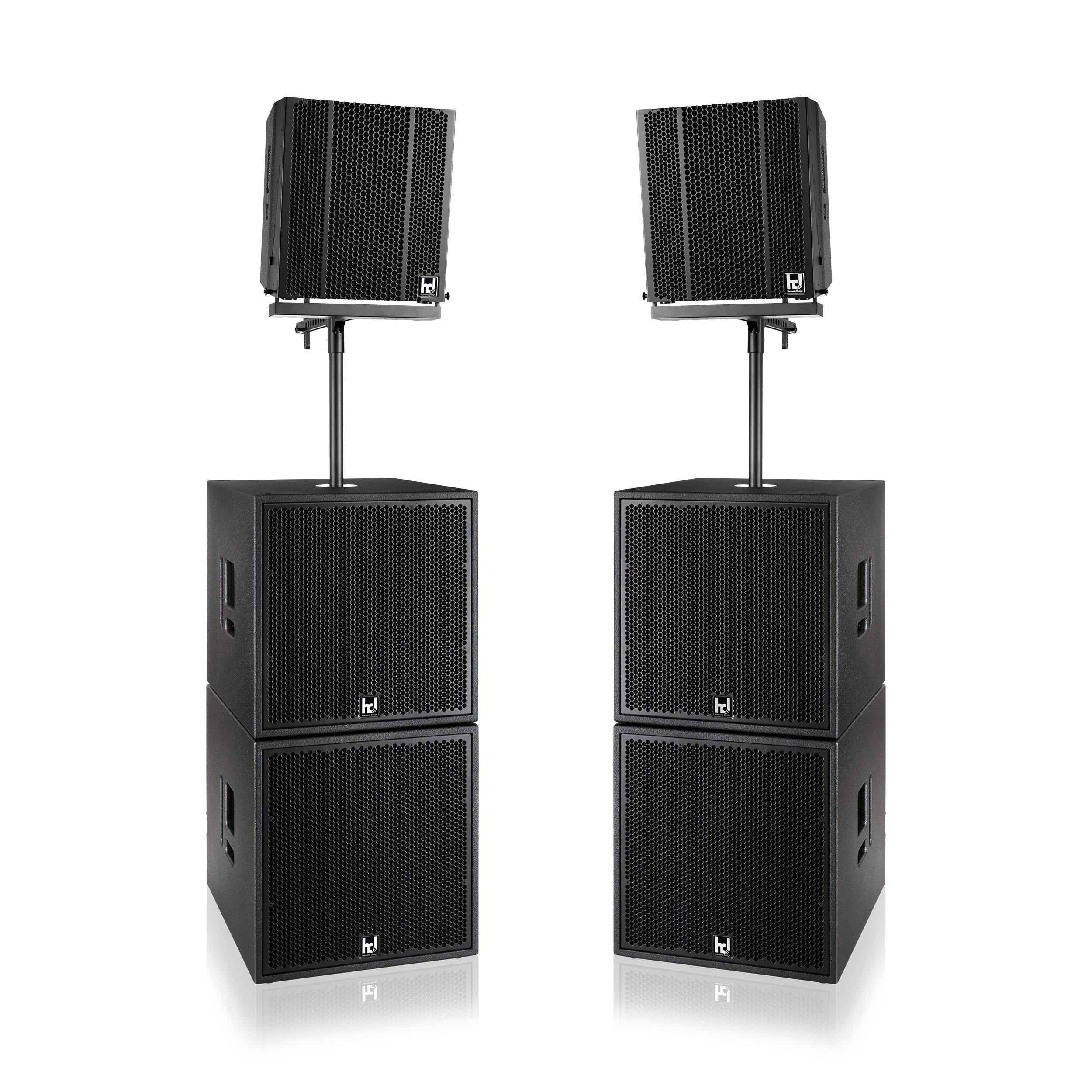

The TourSys systems are available as perfectly tuned all-round full sound systems consisting of top speakers, subwoofers and system amplifiers. Several TourSys systems can be expanded into one large system to create sound systems for up to 5,000 listeners.
| Model | hd HLS16 (BI-AMP) hd HLS16P (passiveXO) |
|---|---|
| Principle | Bass reflex system/hybrid horn |
| Transducers | 2x 8″N woofer/midrange speakers 2x 1.4″N HF |
| Crossover | 2-way active (hd HLS16) passive, 1100 Hz (hd HLS16P) |
| Power handling capacity (RMS/Peak) | 700 W / 2800 W |
| Frequency range | 70 Hz – 20 kHz |
| Sensitivity (1 W / 1 m) | 105 dB |
| SPLmax | 137 dB |
| Nominal dispersion angle | horizontal 100° x vertical 40° |
| Nominal impedance | passiveXO: 4 Ohms BI AMP: LF 4 Ohm, HF 8 Ohm |
| Connection | 2x Speakon NL4 |
| Dimensions (W x H x D) | 370 x 405 x 540 mm |
| Weight | 23 kg (hd HLS16) 24 kg (hd HLS16P) |
| Enclosure | Multiplex birch wood polyurea plastic coating black steel grille coated Acoustic foam ergonomic transport handles tripot adaptor pre-inclined 2.5° integrated 3-point FastRig rigging |
| Options | hd HLS16-RF3 hd UniFrame16 Transport Protection Cover hd TourCase RAL color weather protection |
